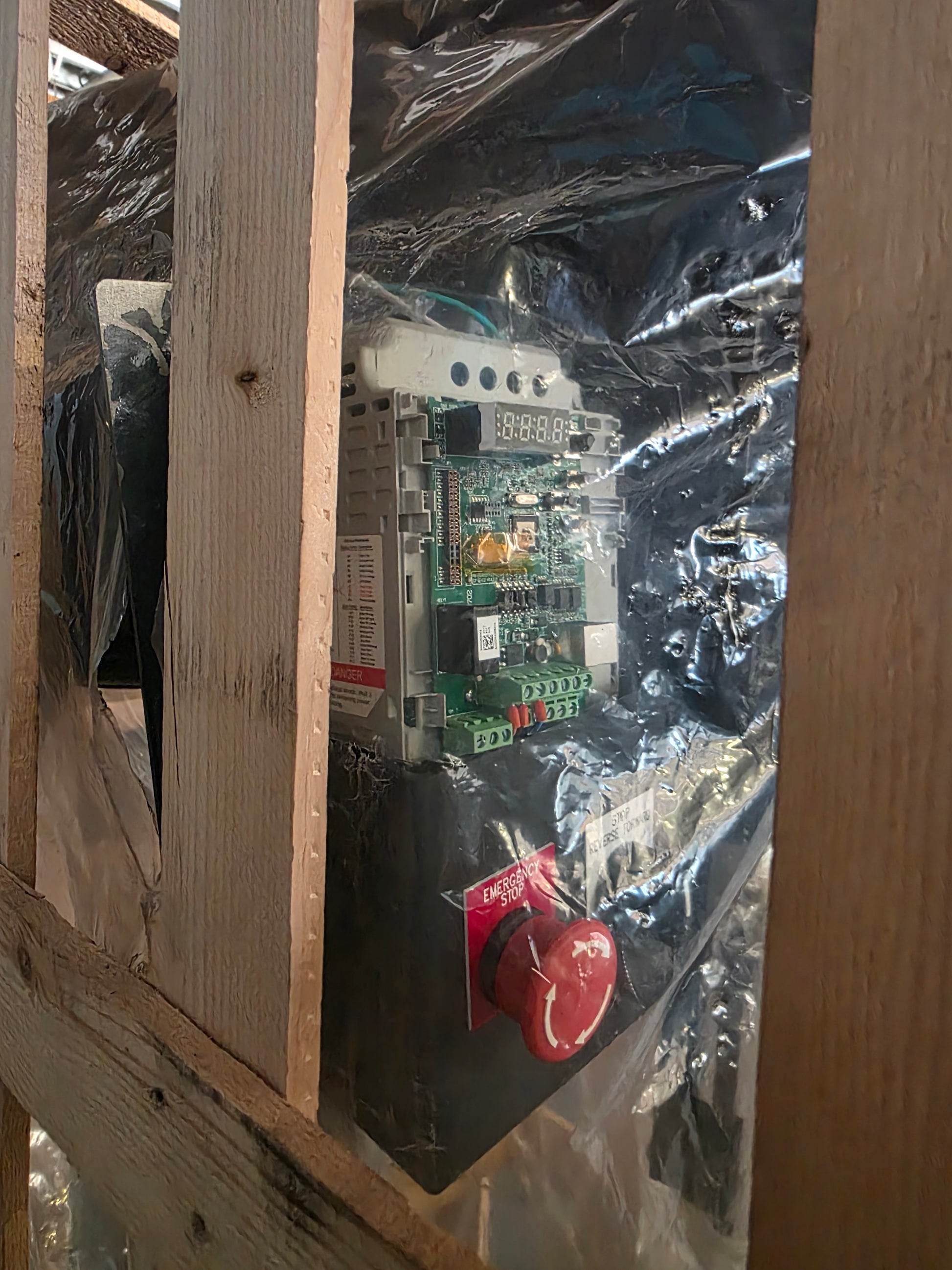

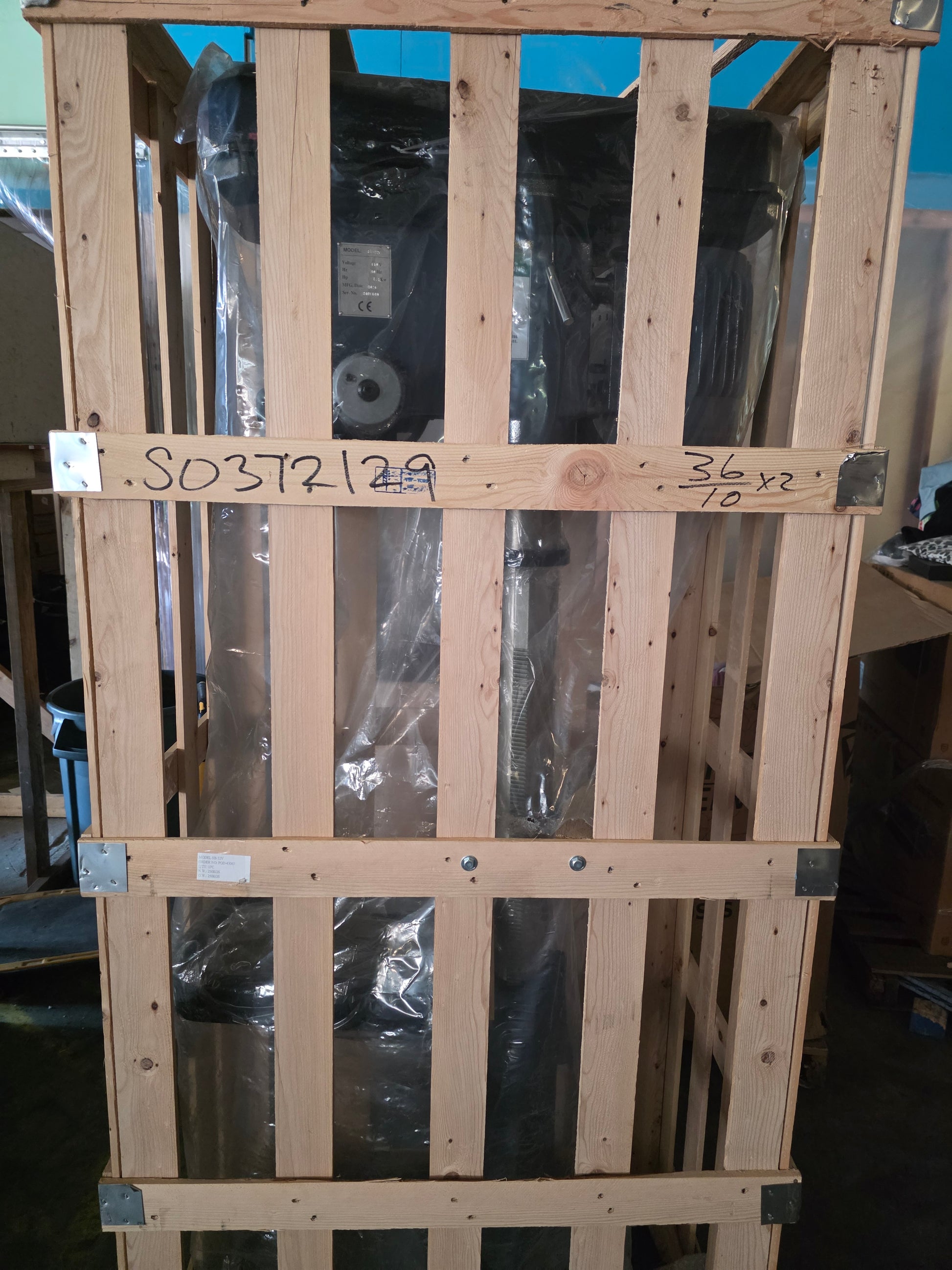

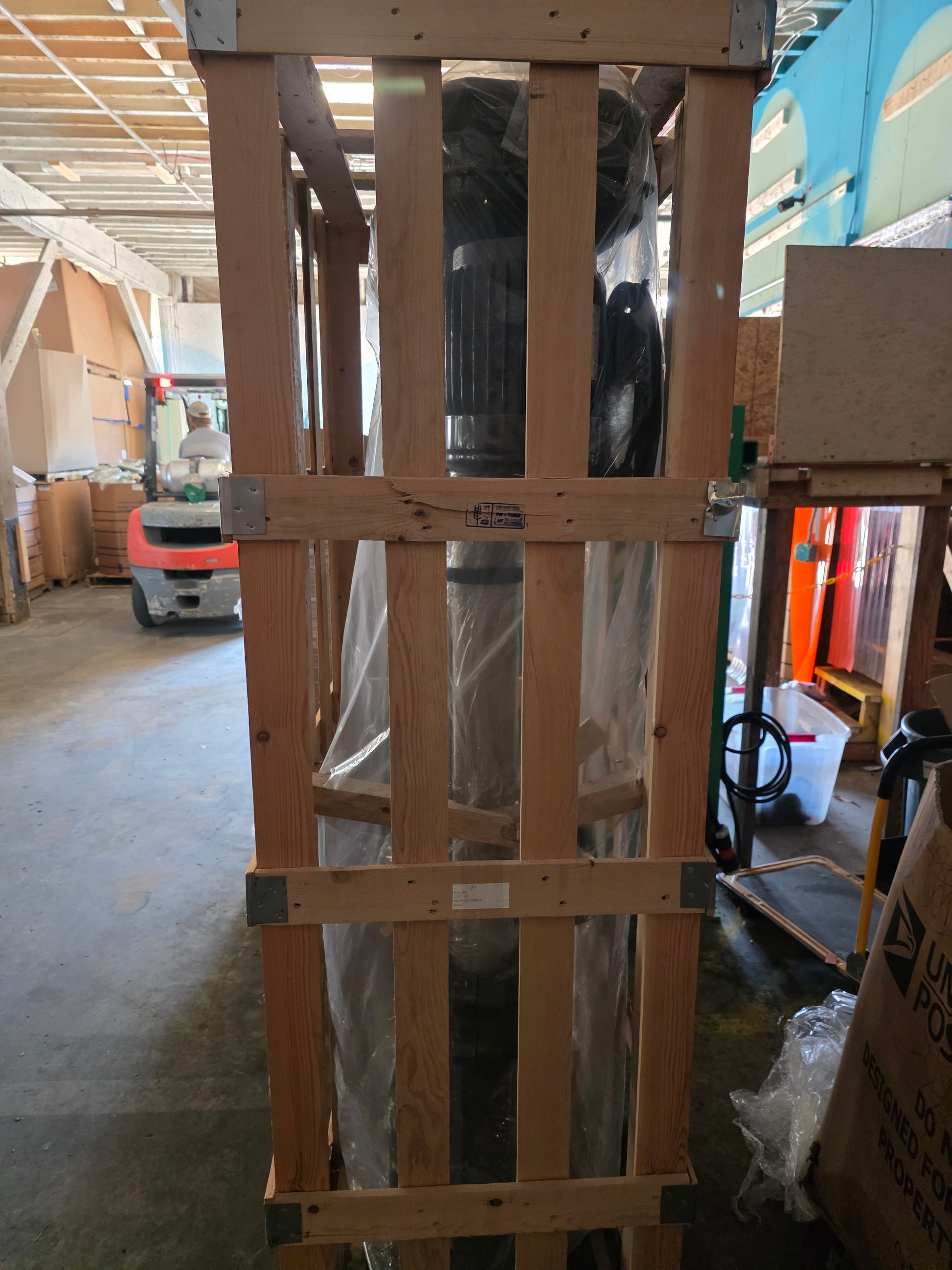

Apperars to be new, never used. Does have some damage to the control pannel (see photos). UNIT NIT TESTED. SOLD AS-IS

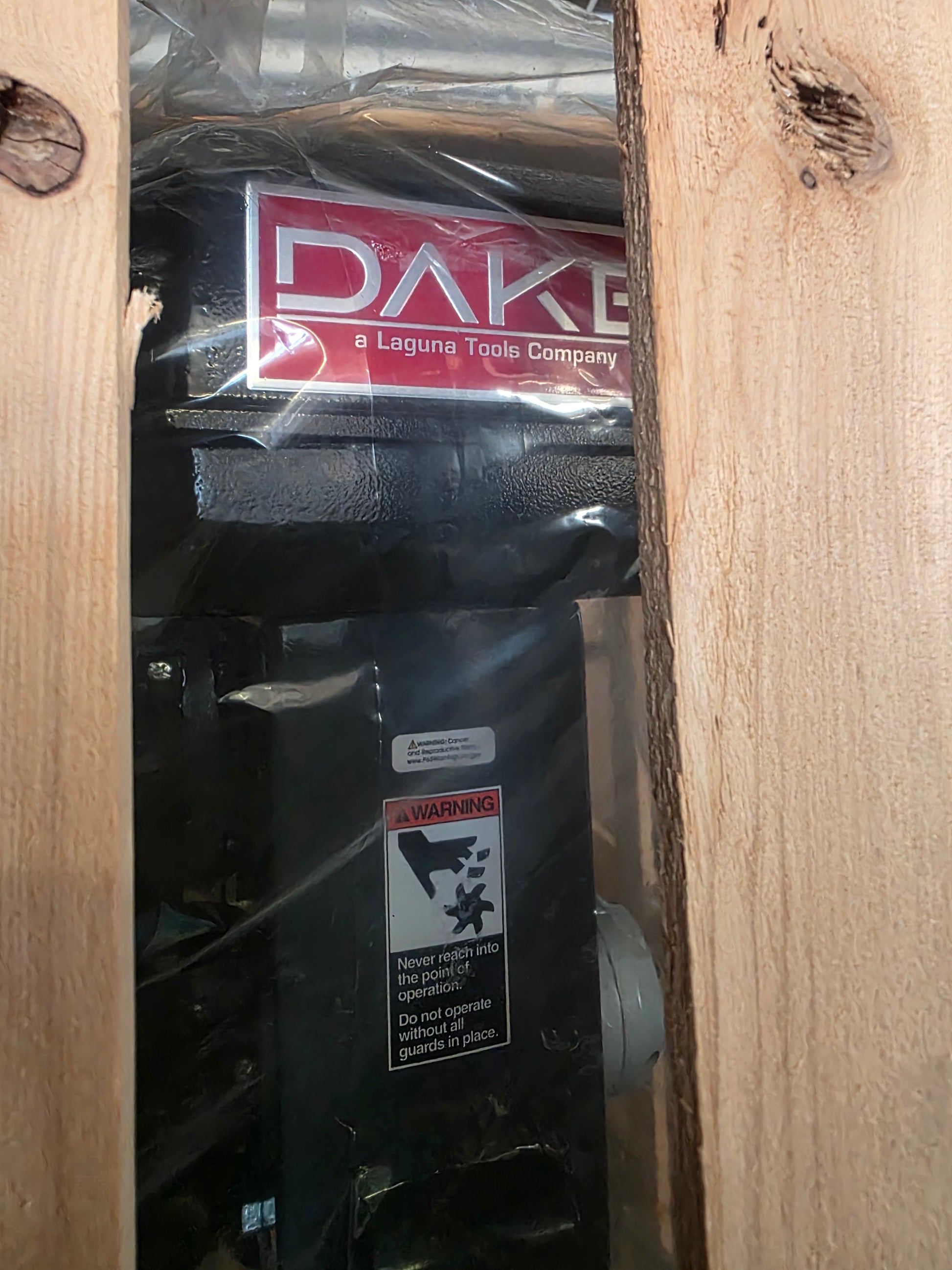

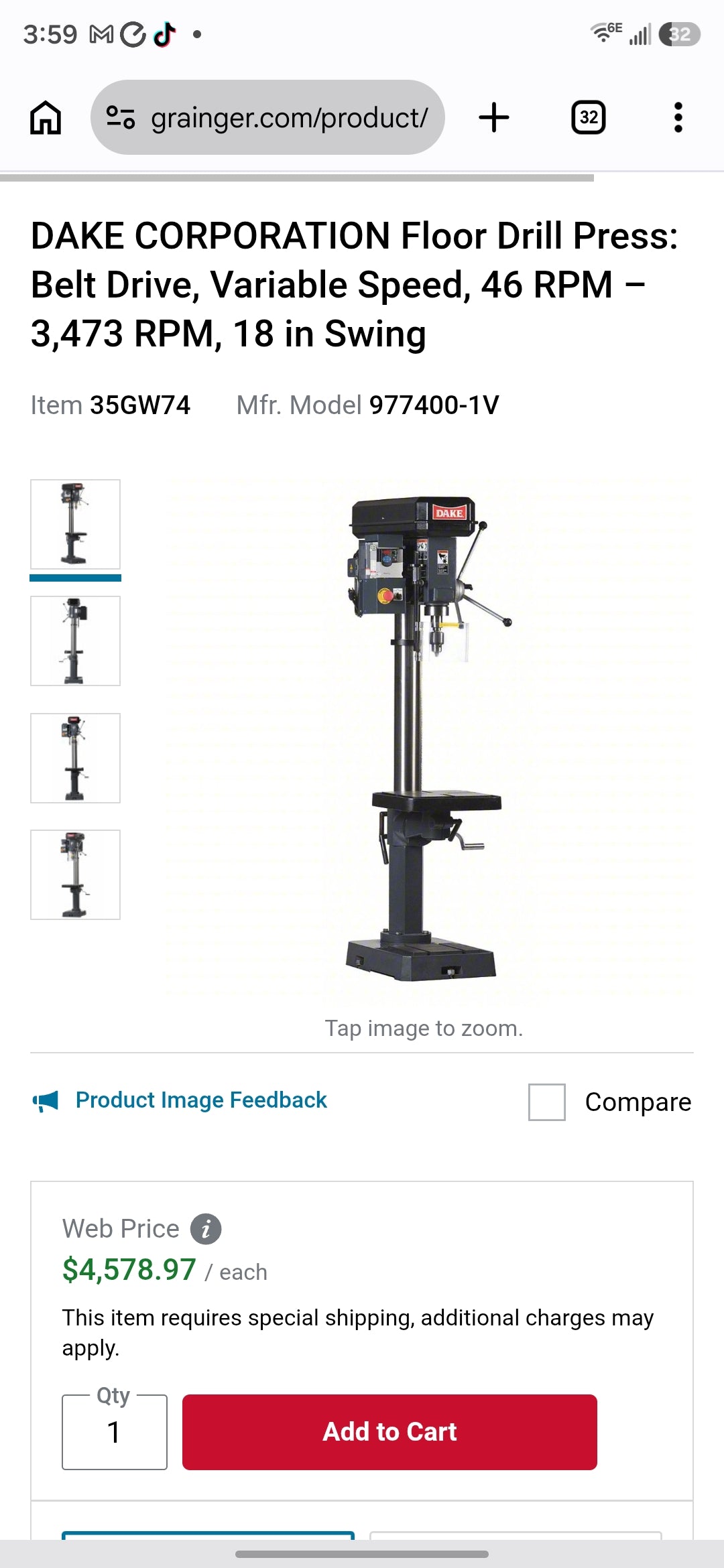

The Dake SB-32V Floor Drill Press (Model 977400-1V) is a heavy-duty, 1-1/4" capacity industrial drill press featuring a variable-speed frequency inverter, forward/reverse tapping capabilities, and a sturdy MT4 spindle taper. It runs on 115V/120V single-phase power and typically retails between $4,500 and $4,800.

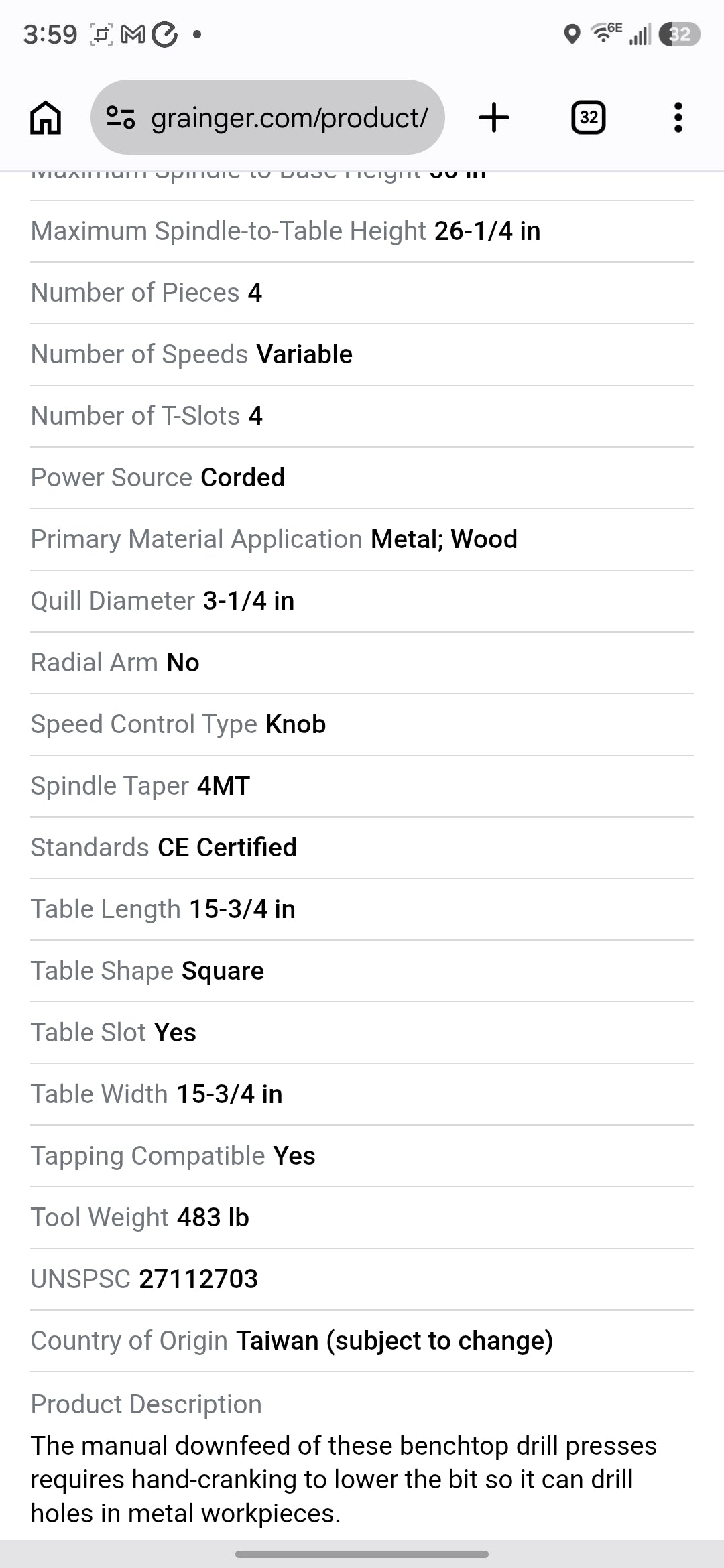

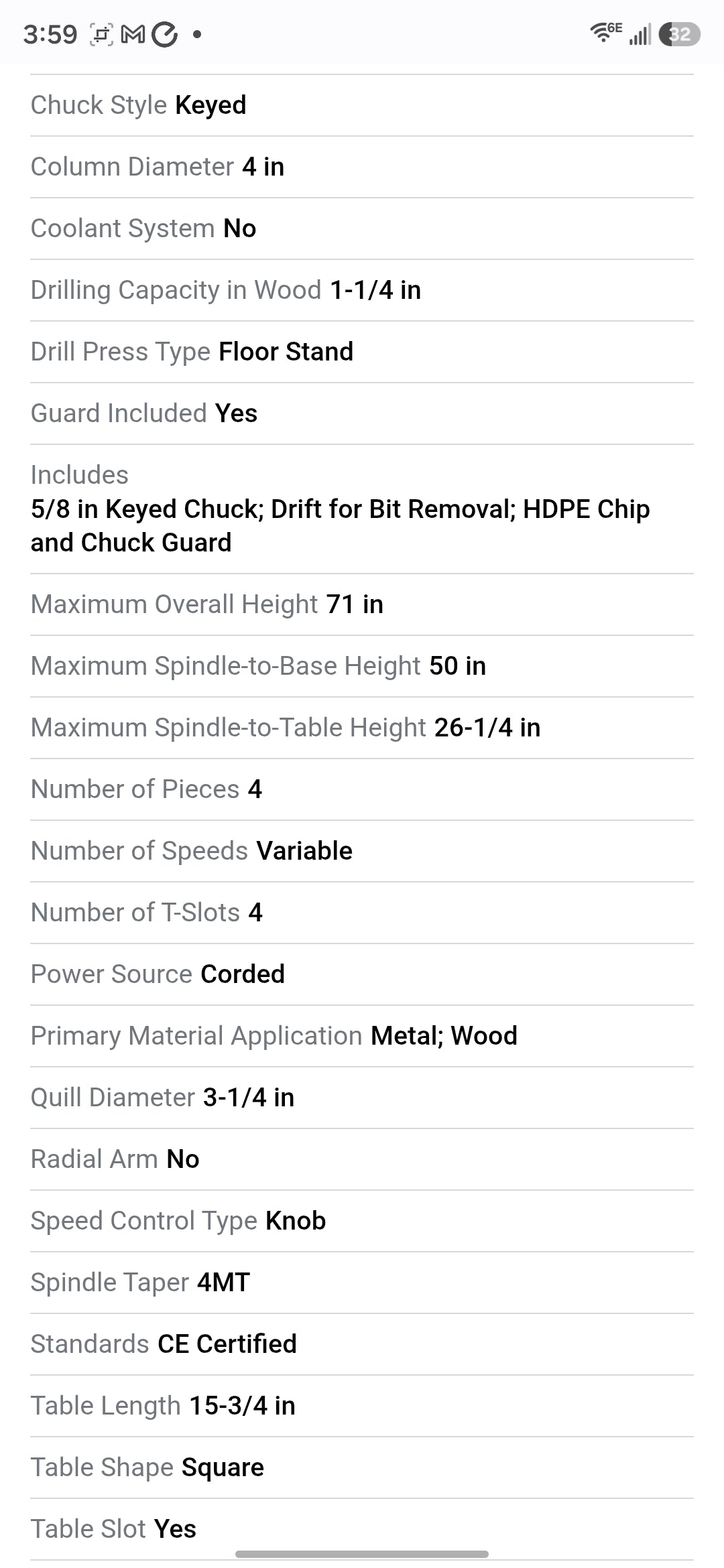

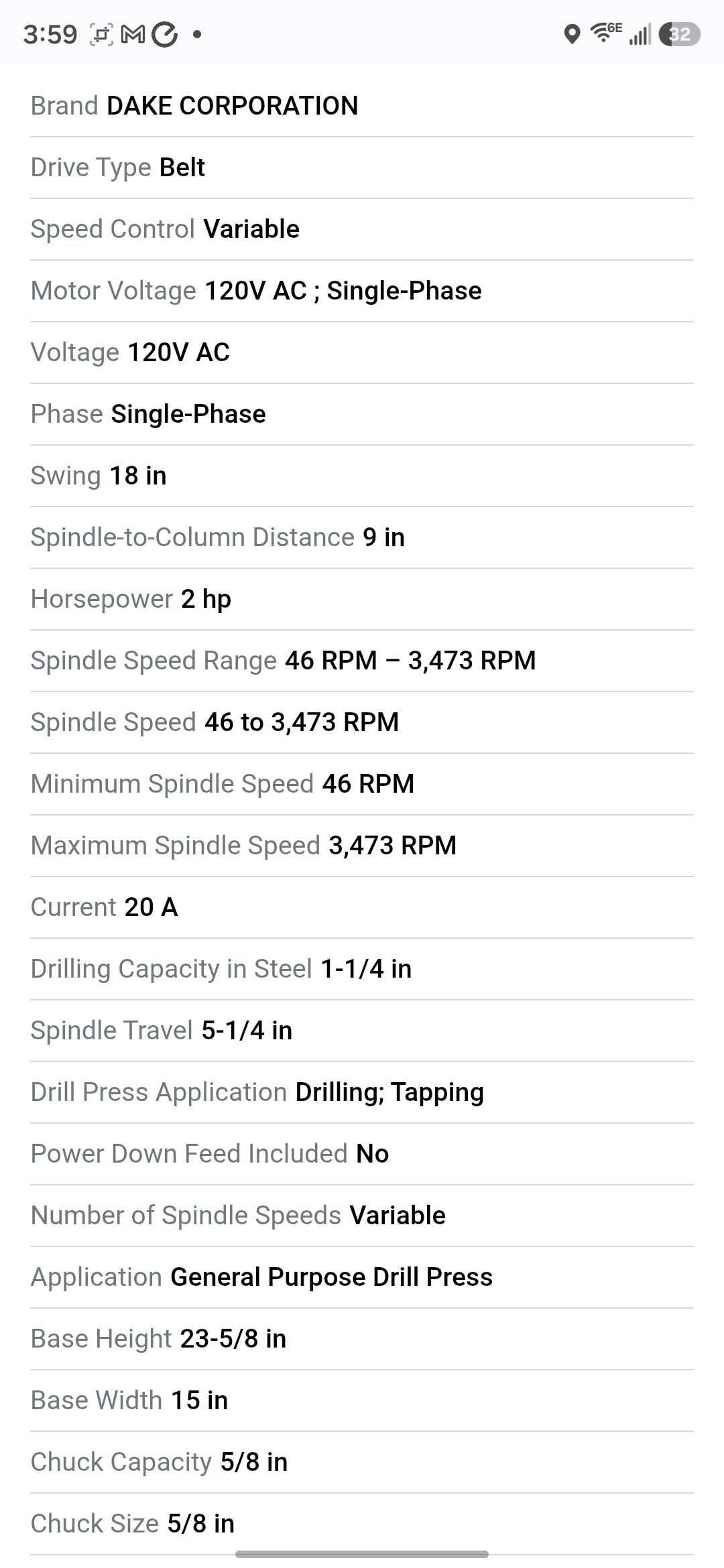

Key Specifications
Drilling Capacity: 1-1/4" (Steel and Wood)
Spindle Speed: 46 – 3,473 RPM (Variable)
Swing: 18"Spindle Taper: MT4
Spindle Travel: 5-1/4"
Motor: 2 HP (110V/120V, 1-Phase)
Weight: 483 lbs
Notable Features
Frequency Inverter: Allows for easy, concentrated torque and speed changes on the fly.
Tapping Connectivity: Includes a forward and reverse selector switch for tapping applications.
Depth Control: Locking handle hub with dial-in adjustment and an easy-to-read scale for highly repeatable depth settings.
Safety Package: CE-certified electrical package featuring an emergency stop button, low voltage controls, thermal overload protection, and an interlock safety switch for the belt cover.
Standard Accessories: Ships with a 5/8" keyed drill press chuck, drift for bit removal, and a Plexiglas chip and chuck guard
Capacity & Performance
Drilling Capacity (Steel): 1-1/4 inches
Drilling Capacity (Wood): 1-1/4 inches
Working Diameter / Swing: 18 inches
Spindle-to-Column Distance: 9 inches
Spindle & Head
Spindle Taper: Morse Taper 4 (MT4)
Spindle Travel / Quill Stroke: 5-1/4 inches
Quill Diameter: 3-1/4 inches
Spindle Speed Range: 46 to 3,473 RPM
Number of Speeds: Infinitely variable via frequency inverter knob
Spindle Feed: Manual downfeed
Electrical Requirements

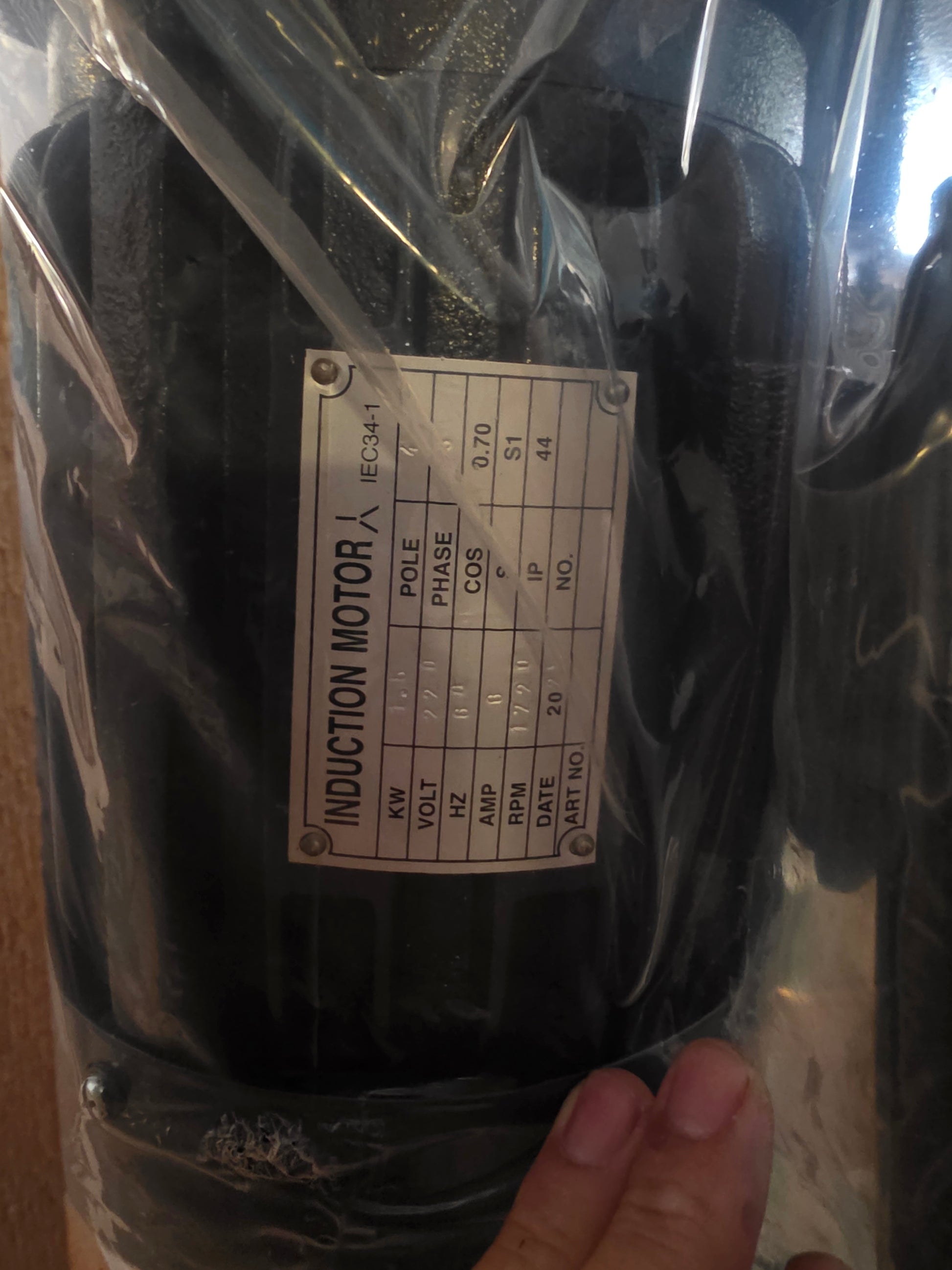

Motor Power: 2 Horsepower (HP)
Operating Voltage: 115V / 120V AC
Phase: Single-phase (1 PH)
Amperage Draw: 20.0 Amps
Frequency: 60 Hz
Table & Base Dimensions
Table Work Surface: 15-3/4" x 15-3/4" (Square)
Table T-Slots: 4 slots, 5/8-inch slot size
Base Dimensions (D x W): 23-5/8" x 15"
Column Diameter: 4 inches
Vertical Clearances & Footprint
Maximum Spindle-to-Table: 26-1/4 inches
Maximum Spindle-to-Base: 50 inches
Overall Dimensions (W x D x H): 15" x 23-5/8" x 71"
Machine Weight: 483 lb
